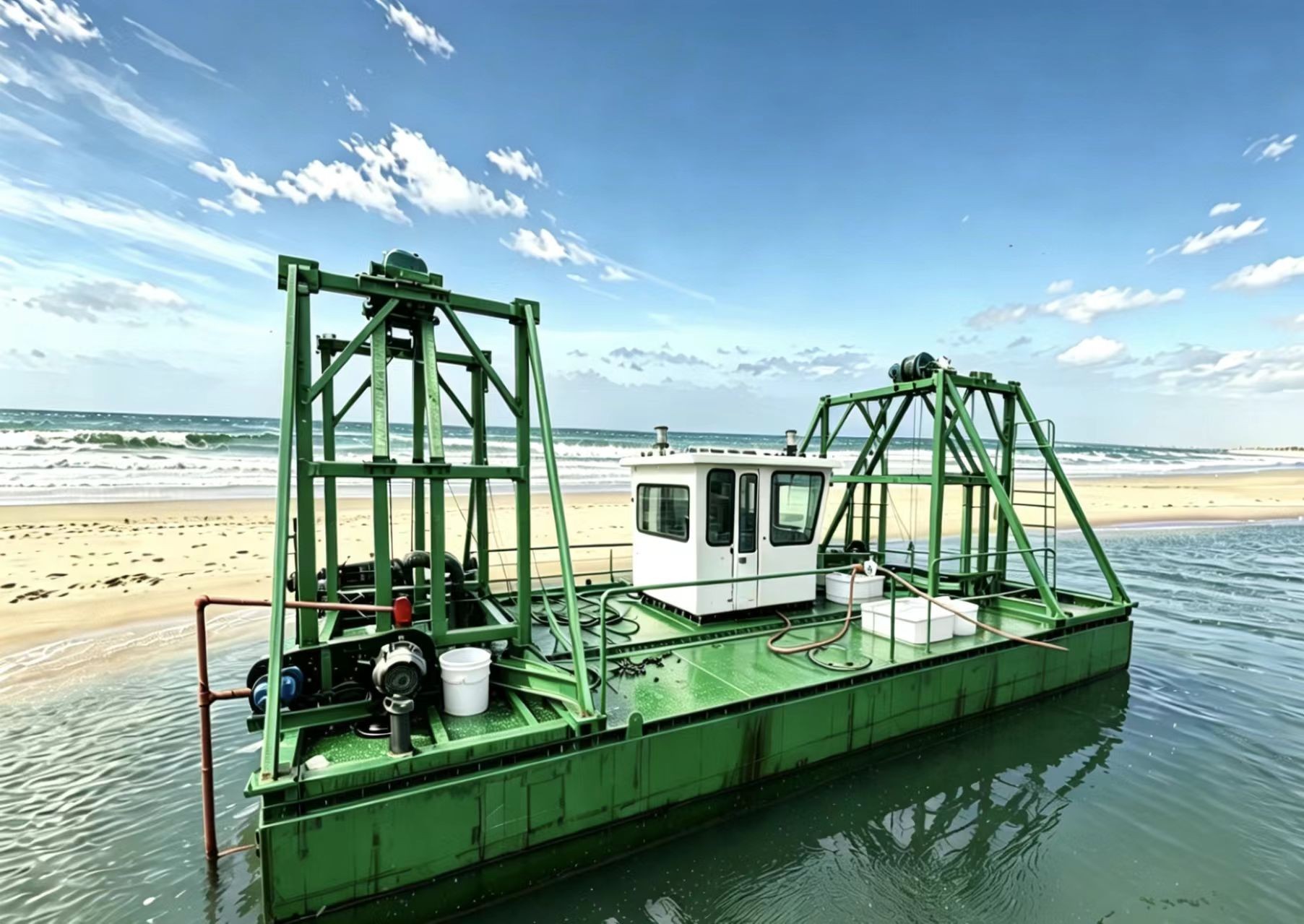

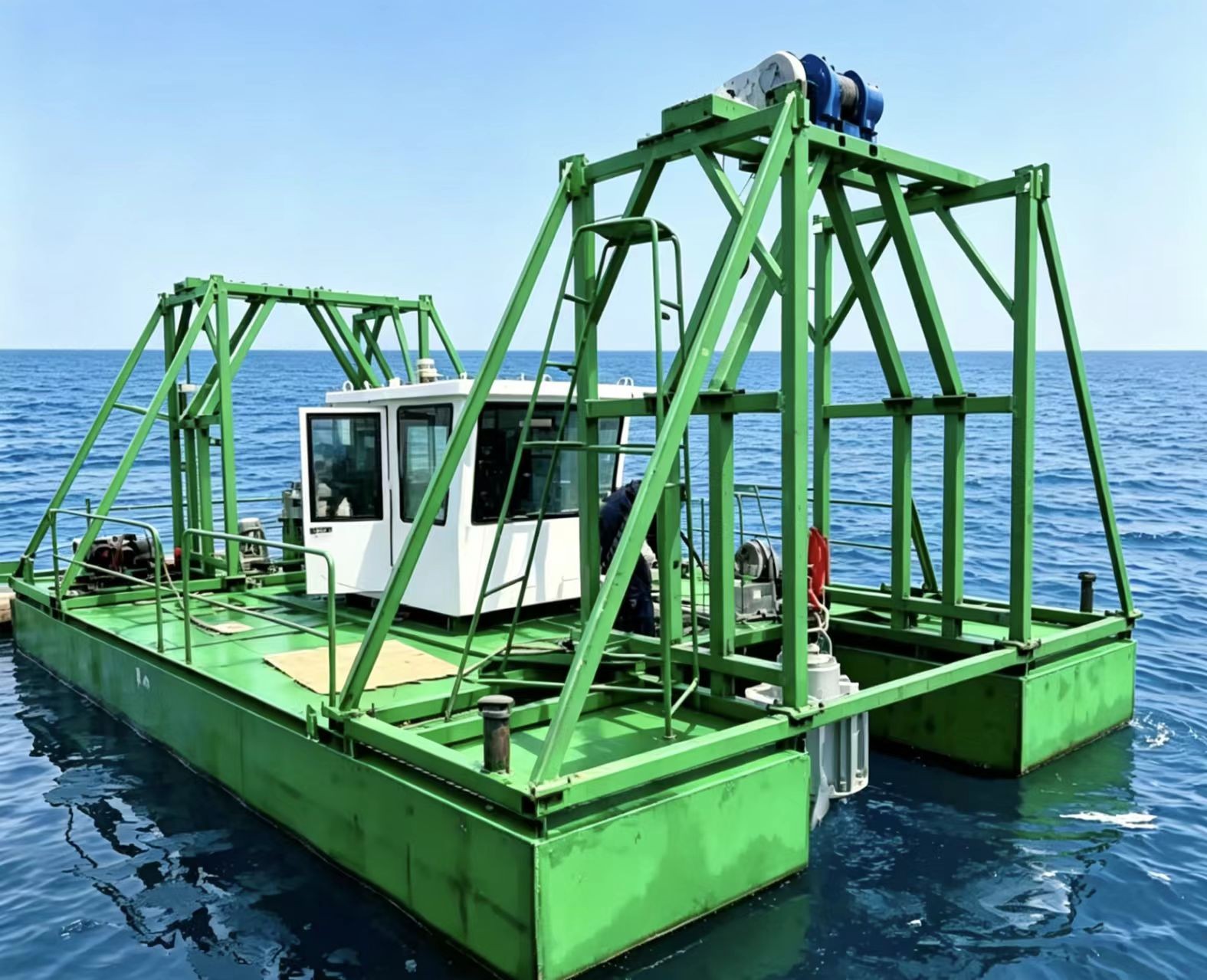

Submersible Pump Sand Dredger

Total Flow Capacity: 400 CBM/H (200 CBM/H * 2)

Pump Head: 30m

Power System: 380V 60Hz Electric Drive with PLC Control

Key Advantage: Equipped with 2 units of heavy-duty submersible mud pumps and 4 agitators for high-density slurry agitation and suction.

Product Overview & Features

• Dual Submersible Pump System: Features 2 standalone units of 45kw submersible mud pumps, delivering a total flow capacity of 400 CBM/H with a 30m pump head.




• Powerful Slurry Agitation: Equipped with 4 units of 3kw electric agitators rotating at 60 rpm with a 400mm diameter to loose and mix the sand sediment before pumping.




• Robust Double-Hull Structure: Configured with 2 pontoon hulls made of premium steel (Bottom 4mm, Side 4mm, Deck 3mm) ensuring reliable buoyancy and stability.




• Smart Control Cabin: Includes a fully equipped operation room (1.8x1.8x1.8m) with a 1.2P Air Conditioner and centralized PLC control console.




• Advanced Electrical Control: Integrated system utilizing "Reduce voltage start" for the mud pumps and "Direct start" for winches and auxiliary systems.




• Flexible Propulsion & Positioning: Outfitted with 2 units of 15kw thrusters (1.2m shaft, 520mm blade) for movement, 4 units of 50 kg anchors, and a comprehensive hydraulic/electric winch array for positioning.




Technical Specifications

Optional Configuration Note: The power generator is an optional configuration. Clients can flexibly choose to procure the generator set locally or by themselves based on project site needs.

Frequently Asked Questions (FAQ)

Q1: What is the total production capacity of this submersible pump sand dredger?

A1: This electric submersible dredger features a dual mud pump setup. Each pump has a capacity of 200 CBM/H, giving the vessel a combined total flow capacity of 400 CBM/H with a maximum pump head of 30 meters, making it highly efficient for high-density sand recovery.

Q2: How does the submersible dredger loosen hard or settled sand layer?

A2: The dredging system is outfitted with 4 powerful electric agitators. Each 3kw agitator has a 400mm diameter and operates at 60 rpm to mechanically stir and agitate underwater sediment, converting it into a fluid slurry that the submersible pumps can easily extract.

Q3: What are the voltage, electrical control, and starting specifications of the pumps?

A3: The entire vessel runs on a 380V 60Hz power supply with centralized PLC control. To protect the electrical network and the 45kw pump motors, the system uses a smart "Reduce voltage start" configuration for the mud pumps, while the positioning winches leverage a "Direct start" method.

Q4: What is the size and plate thickness of the double-hull structure?

A4: The floating platform consists of 2 pontoon hulls with single hull dimensions of 9000x1750x1100mm, combining into an overall dimension of 9000x5500x1100mm. The structure is built with heavy-duty steel plates measuring 4mm for the bottom, 4mm for the sides, and 3mm for the deck.

Q5: Is a marine power generator included with the submersible sand suction dredger?

A5: The generator set is an optional component. You can purchase the marine generator independently by yourself to match your specific onsite fuel preferences and emissions standards, or request our team to provide a turnkey package.
