Save 6 months of factory waiting time. B watermaster-type amphibious dredger available immediately. Heavy-duty 335kW Cummins engine & Rexroth pump.
⚡ Liquidation Clearance - In Stock
Avoid the industry's standard 6-month factory backorder. Due to an international client's sudden contract default, this heavy-duty, watermaster-type multipurpose dredger is fully built, CCS certified, and ready for immediate ocean freight shipping at a strict liquidation discount.

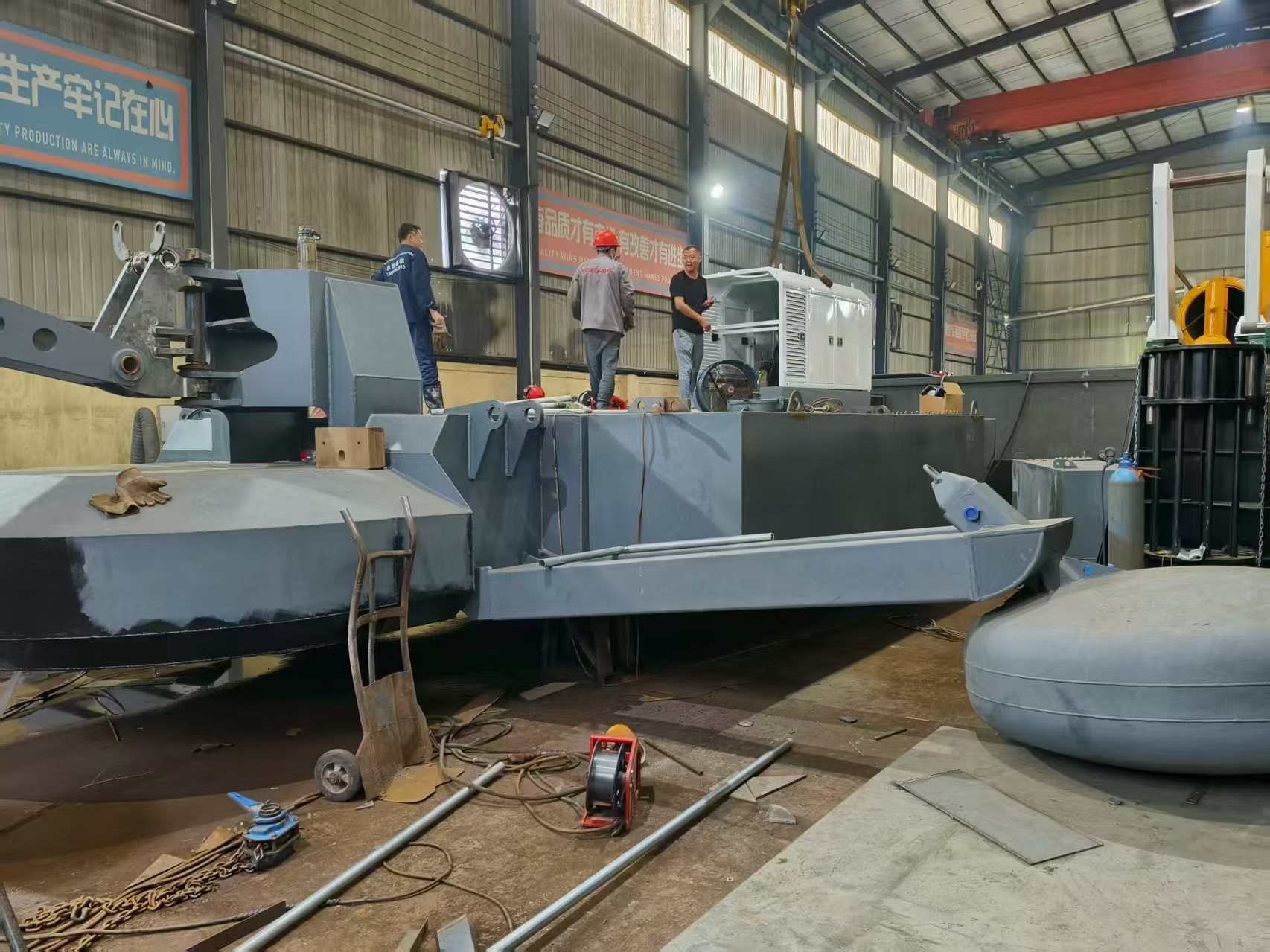

Fully manufactured and tested. Ready to be towed or loaded at the port within days. Eliminate project downtime and contractual delays immediately.
Driven by a massive 335kW Turbocharged Cummins Engine paired with a high-displacement Rexroth main pump (255mL/R). Tailored for high-density mining slurry.
Equipped with a 5-compartment corrosion-resistant hull, front spuds (6m), and rear tilting stabilizers (7m). Walks directly into shallow water without crane assistance.
⚡ Clearance Sale - 1 Unit Available Now
| Specification Component | Official Certified Data |
|---|---|
| 1. Dimensions & Logistics Weight | |
| Hull Size (L * W * H) | 11.0m × 3.3m × 3.1m (Hull only) |
| Transportation Length (without boom) | 11.8m |
| Transportation Length (with boom) | 16.0m |
| Transportation Width * Height | 3.0m × 3.1m |
| Total Transportation Weight | 23 Tons (Highly optimized for standard low-bed trailers) |
| 2. Power Pack (Engine System) | |
| Engine Brand / Origin | Cummins / Made in China (Premium Heavy Industrial Grade) |
| Cooling Type | Turbocharged and Inter-cooled |
| Rated Power Output | 194 kW (260 hp) @ 2200 r/min |
| Fuel Tank Capacity | 1100 Liters (Supports continuous heavy-load operations) |
| Emission Standard / Electrical | Euro III / 24V System |
| 3. Advanced Hydraulics & Propulsion | |
| Hydraulic System Series | Genuine Rexroth Series |
| Axial Piston Pump displacement | 125 mL/R |
| Max. Operating Pressure | 25 MPa |

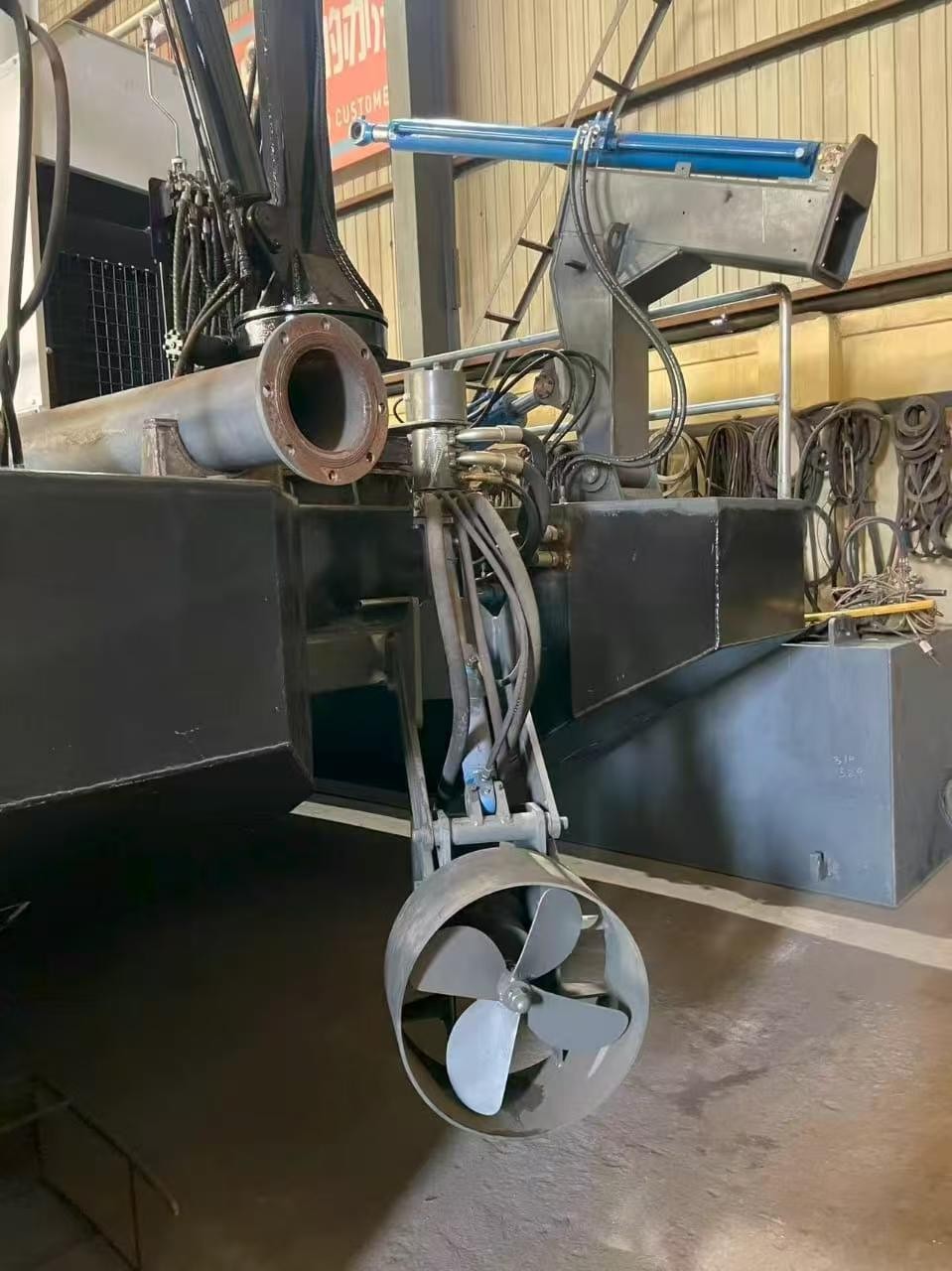

| Self-Propulsion Unit | 4-blade propeller (520mm diameter), travel speed up to 4 knots |
| Stabilizer Spuds Max Depth | Front Stabilizers: 5.2m depth / Rear Tilting Stabilizers: 7.0m depth |
| 4. Excavator & Dredging Performance | |
| Boom Swinging Angle | 180° Full Range Horizontal Excavation |
| Bucket Cylinder Digging Force | 80 kN |
| Max. Boom Horizontal Span | 7.5m |
| Cutter Suction Max Depth | 7.0m water depth |
| Backhoe Dredging Max Depth | 6.0m water depth |
| 5. High Capacity Dredge Pump | |
| Suction / Outlet Diameter | Suction: 200mm / Outlet: 150mm |
| Water Flow Rate | 500 m³/h |
| Max. Discharging Distance | 1000 meters |
| 6. Heavy-Duty Hull & Operation Cabin | |
| Hull Construction | 6 watertight compartments, body shell gas-tightness, slip-safe deck, handrails, protective skid bars on bottom |
| Marine Coating Protection | CCS certified corrosion-resistant painting inside and outside |

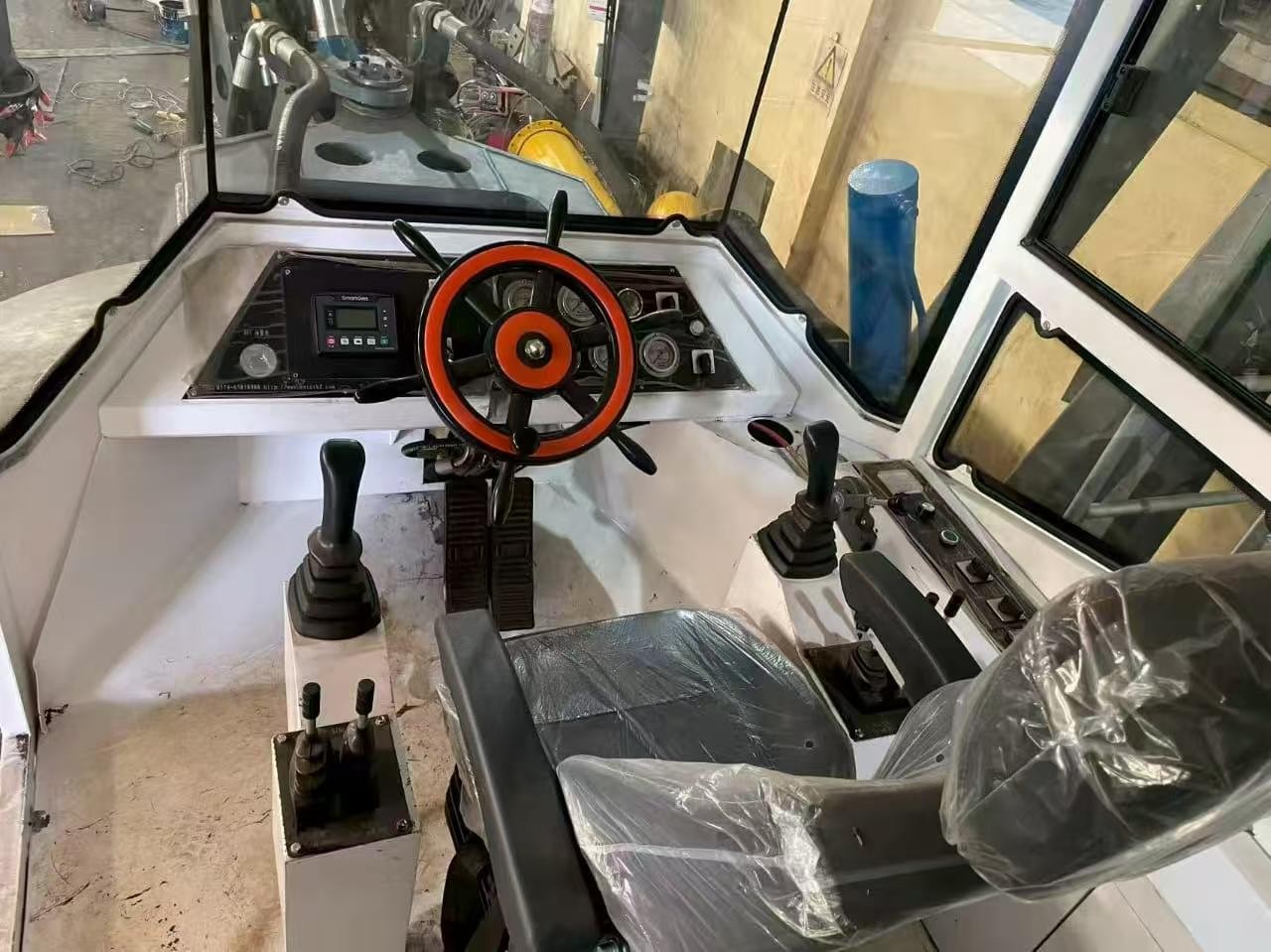

| Operation Room Features | Adjustable chair, movable side-window, cabin air conditioning, advanced PLC system, signal lights, and floodlights |

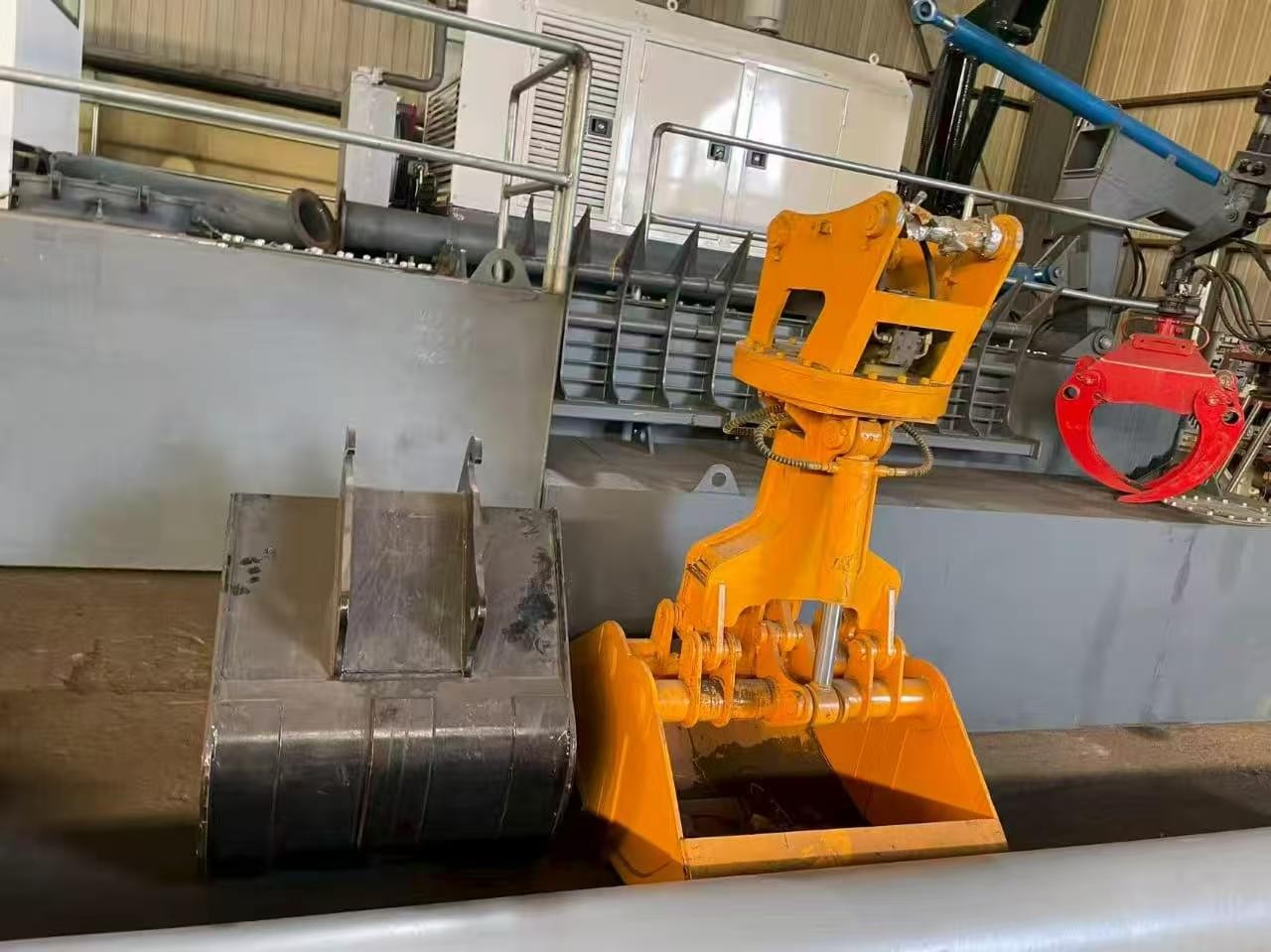

Max Digging Depth: 6.0m | Force: 90kN
Heavy-duty amphibious excavator bucket with high-wear resistant teeth. Engineered for hard clay digging, shoreline piling, and canal widening. **Top choice for wetland restoration contractors.**

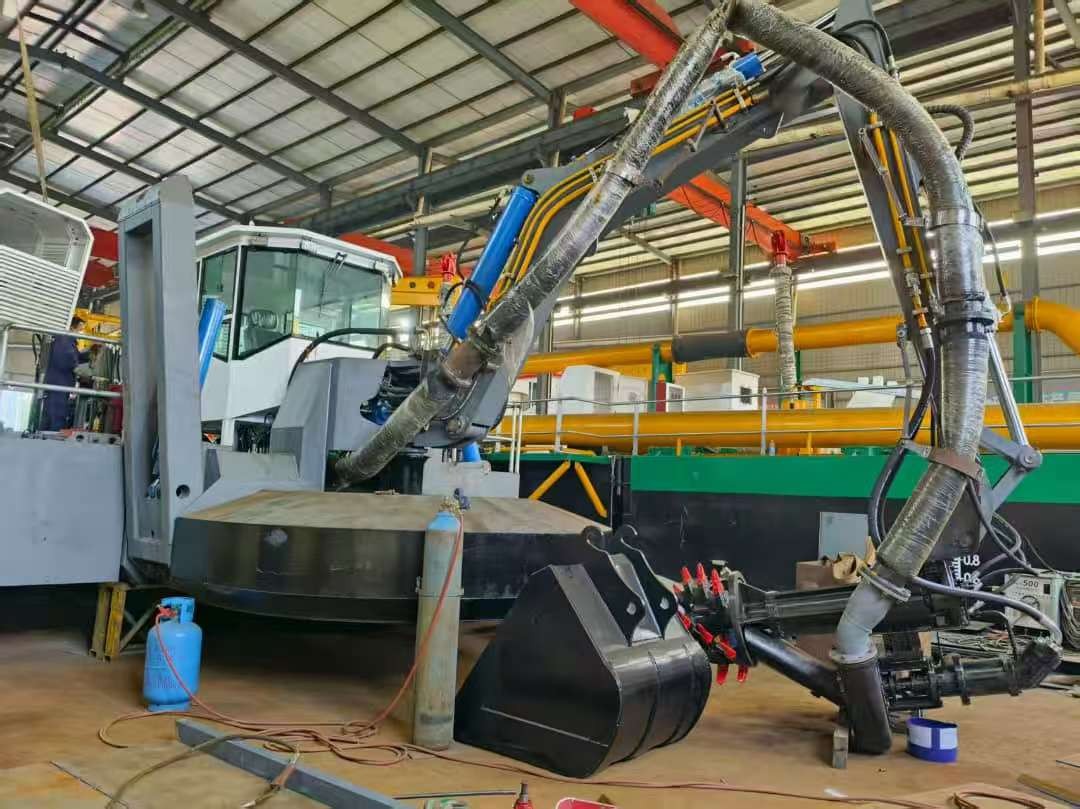

Rexroth Driven | Max Depth: 7.0m
Submersible cutter suction reamer pump for continuous dredging. Delivers high-density solid passage. **Ideal for mining tailings pond management and lithium salt lake extraction.**
Heavy Carbon Steel | Anti-Corrosion
Specialized vegetation removal rake. Designed for rapid surface and root clearance of water hyacinth and marine debris. **Highly searched by municipal flood control authorities.**
CCS Certified | 1-Pair Detachable
Side pontoons with marine-grade coating for maximum buoyancy extension. Ensures mechanical stability in deep waters and corrosive saline salt lake environments.

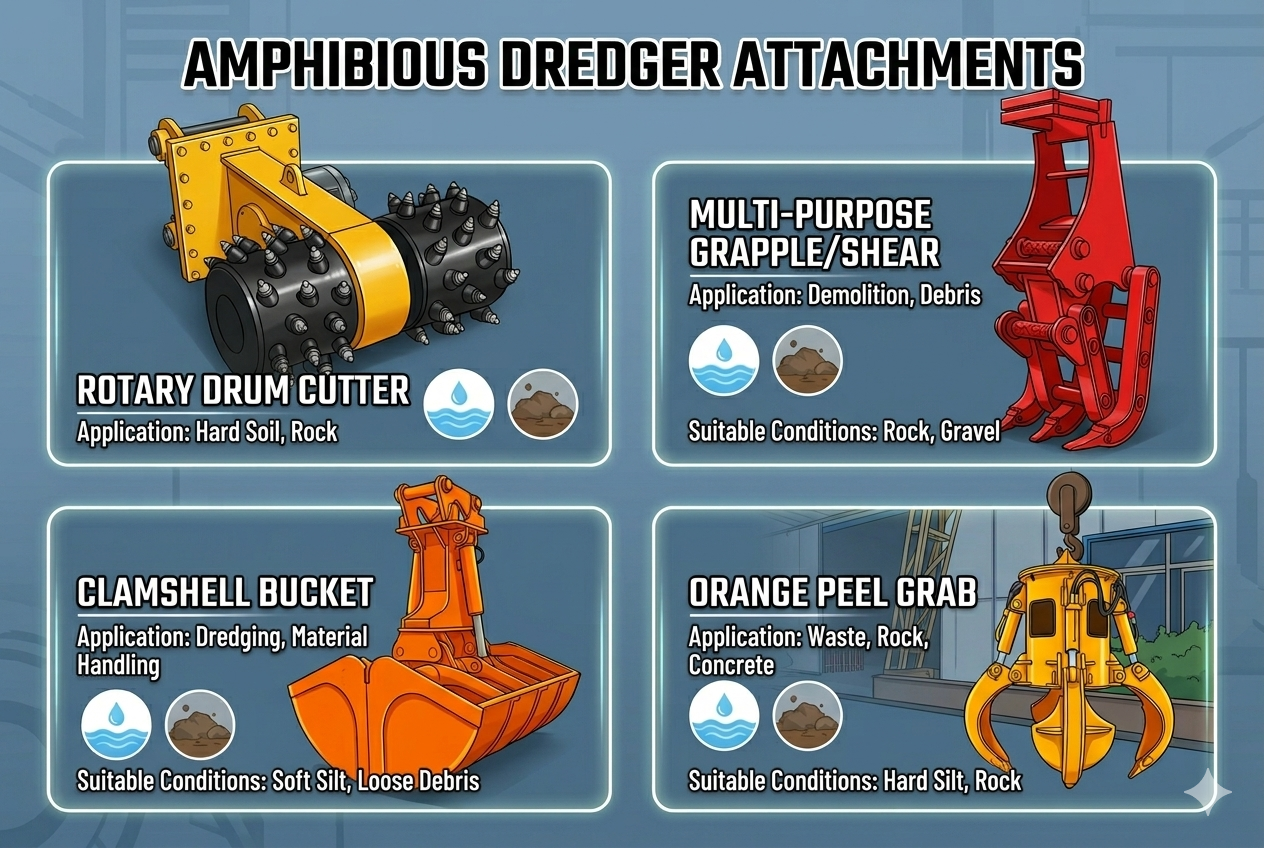

* System note: Equipped with an integrated hydraulic quick-hitch connector, enabling a single operator to switch heavy attachments in under 10 minutes.
A: This unit was fully manufactured and went through strict workshop testing for an international client who unfortunately experienced a sudden contract default. To liquidate this asset quickly, we are offering it as a spot-stock unit with a liquidation clearance discount, allowing the new buyer to skip the standard 6-month factory production lead time.

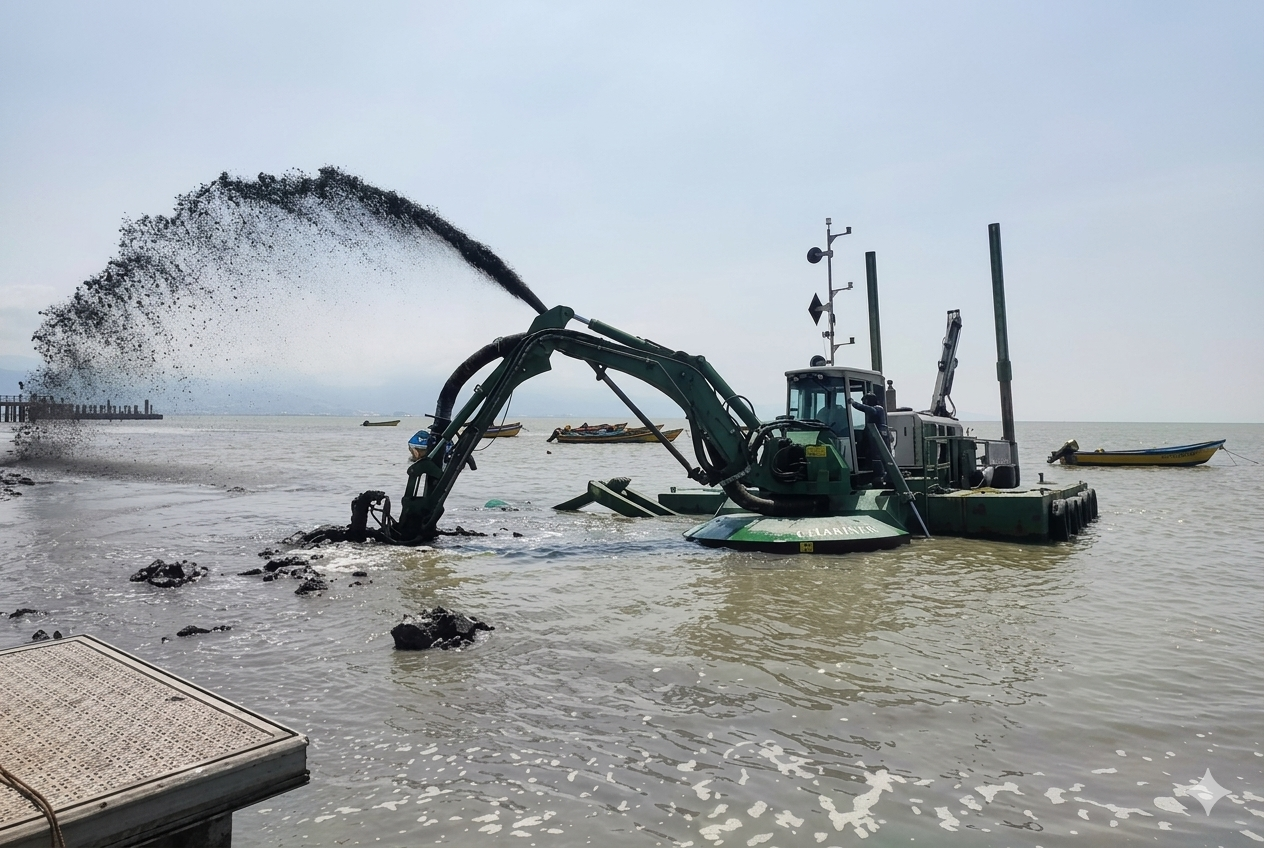

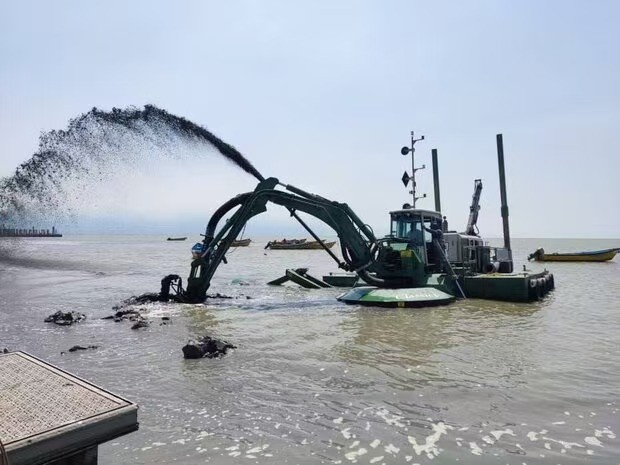

A: Unlike traditional continuous suction dredgers, the amphibious dredger excels in shallow waters, wetlands, and industrial sites. It is highly optimized for mining tailings pond cleaning, lithium salt lake extraction, municipal canal widening, and aquatic weed (water hyacinth) harvesting. Its heavy-duty tracks and tilting spuds allow it to walk in and out of water without crane assistance.
A: The amphibious dredger is powered by an official certified 194 kW (260 hp) Turbocharged Cummins Engine, ensuring reliable heavy industrial power. The hydraulic system utilizes a genuine Rexroth axial piston pump with a 125 mL/R displacement and a maximum operating pressure of 25 MPa, providing steady power to the 80kN digging boom and the 500m³/h dredge pump.
A: The transport dimensions are highly optimized at 11.8m in length (without boom), 3.0m in width, and 3.1m in height, with a total weight of 23 Tons. This allows the entire machine to be transported as a single integrated unit on a standard low-bed trailer without dismantle, significantly reducing domestic trucking and ocean freight costs (FOB/CIF).
A: The dredger features a 180° swinging boom with a max horizontal span of 7.5m. It achieves a maximum cutter suction pump depth of 7.0 meters and a maximum backhoe bucket dredging depth of 6.0 meters. For stability, the front spuds reach 5.2m and the rear tilting spuds stabilize up to 7.0m deep, reinforced by CCS certified detachable side pontoons.
Chat directly with our International Trade Director. Get 3D CAD drawings, exact ocean freight rates, and factory-direct clearance discounts instantly.
